Pistol Bay Mining Inc.

Trades on TSX Venture Exchange under the symbol “PST”

View Properties

Our goal is to develop under-explored properties, benefit from deal flow generated by our strategic partnership and growth opportunities.

Confederation Lake Map

Confederation Lake VMS Greenstone Belt, Ontario
  • Recently Staked over 14,500 Acres of Conductors and IP Anomalies
  • 1096 claims over 20,700 hectares or 51,570 acres.
  • A total of 570 holes were drilled on all the properties. A. Garnet Lake / Arrow Zone
    Indicated Resource 2,071,000 tonnes @ 5.92% Zn, 0.75% Cu, 21.1 g/t Ag and 0.58 g/t Au
    B. Copperlode “A” or Fredart Zone
    Recent VTEM Plus identified 400, 850, 900 and 950 metres conductors and there is an almost continuous trend of conductivity over a length of 6.5 kilometre Historical mineral resource of 386,000 tonnes grading 1.56% copper (non-compliant NI 43-101 and has not been reviewed by a Qualified Person).
    C. Ben Lake, Joy, Joy North and Caravelle
    100,000 tonnes grading 12.5% zinc and 0.5% copper
    D. Mitchell, Gerry Lake and Karas Lake
    Consists of 33 mining claims, comprising 232 claim units, and covering approximately 3700 hectares
    E. Multiple drill targets identified by recent VTEM Plus Survey

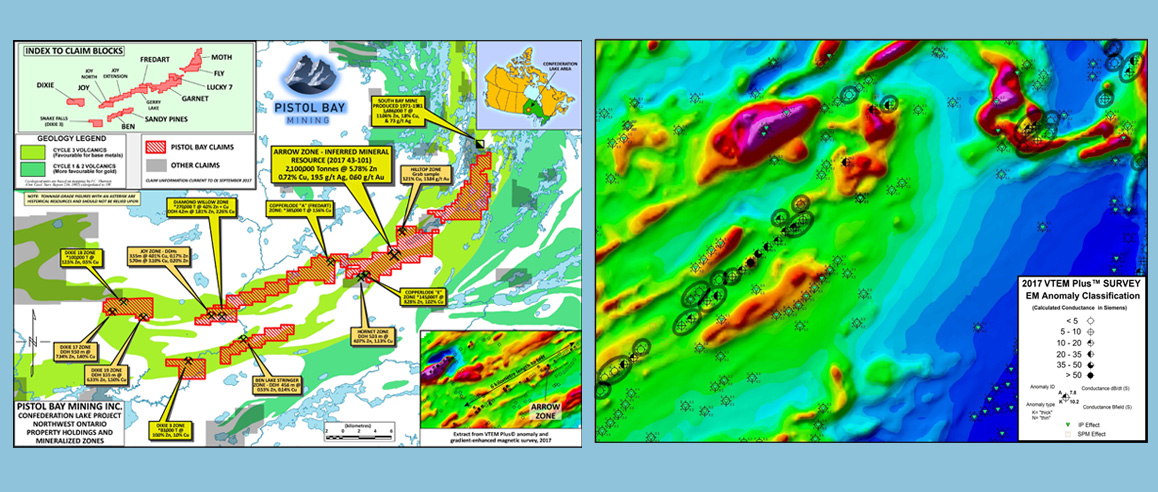

  • VTEM Extra Conductors Map

    Who We Are

    Pistol Bay Mining Inc. (PST.V – TSX)


    Pistol Bay Mining Inc. is a diversified junior Mining Canadian Exploration Company with a specific focus on zinc and other base metal properties in North America. The Company is engaged in the acquisition, exploration and development of mineral properties and is focusing on:

    100% optioned properties in Confederation Lake VMS Greenstone Belt, Ontario:

    · Garnet Lake/Arrow Zone Zinc-Copper Claims
    · Dixie 17, 18, 19, 20 and Dixie 3 Zinc-Copper Claims
    · Fredart, Copperlode, Zinc-Copper Claims
    · Ben Lake, Joy and Caravelle Zinc-Copper Claims
    . Lucky 7 / Moth Zinc-Copper Claims

    Red Lake Mining District, Ontario

    . Pakwash Project

    Vanadium Project, Nevada

    Vanadium Claims Group Project

    Garnet Lake / Arrow Zone
    The Arrow Zone has a 43-101 compatible mineral resources as follows:

    3% Zn equivalent cutoff:
    Indicated Resource 2,071,000 tonnes @ 5.92% Zn, 0.75% Cu, 21.1 g/t Ag and 0.58 g/t Au
    Inferred Resource 120,550 tonnes @ 2.60% Zn, 0.56% Cu, 18.6 g/t Ag and 0.40 g/t Au

    5% Zn equivalent cutoff:
    Indicated Resource 1,762,000 tonnes @ 6.75% Zn, 0.79% Cu, 22.3 g/t Ag and 0.61 g/t Au
    Inferred Resource 51,630 tonnes @ 3.86% Zn, 0.79% Cu, 23.9 g/t Ag and 0.58 g/t Au

    10% Zn equivalent cutoff:
    Indicated Resource 633,000 tonnes @ 14.3% Zn, 1.11% Cu, 31.7 g/t Ag and 0.85 g/t Au t Lake / Arrow Zone

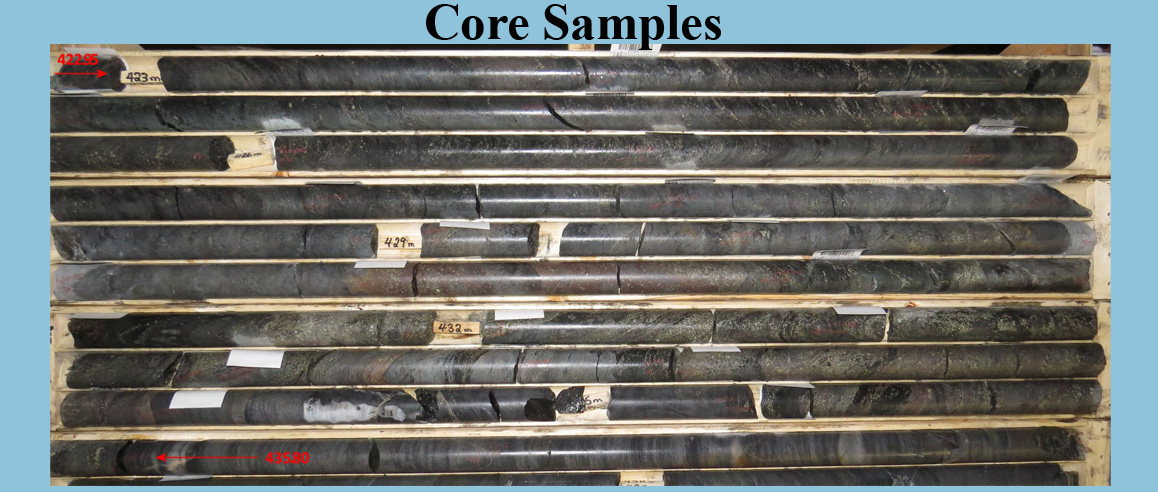

    Assay results from April 2018 drill program:
    DDH GL18-01 intersected 4.34 ZnEq over 10.90 metres
    DDH GL18-02 intersected 5.15% ZnEq over 12.85 metres

    Dixie 17, 18, 19, 20 and Dixie 3

    The Dixie Zinc Copper Project is optioned by Pistol Bay and is in Confederation Lake Greenstone Belt in Ontario. This property is known as the 17-18-19 Dixie Claims. Pistol also owns the Dixie 20 Claim which is located east of the Dixie 18 Claim and North of the Dixie 19 Claim. In addition,Pistol Bay also has the Dixie 3 claim, formerly know as the Snake Falls property. This property is located 45 kilometers southeast of Red Lake. It is within 8 kilometers of the Dixie 17, 18, 19, 20 properties and fits within the company's exploration model located 35 kilometers southeast of Red Lake, Ontario.These are Zinc-Copper properties

    Fredart, Copperlode

    The other substantial deposit is the Copperlode “A” or Fredart Zone. It has a historical mineral resource of 386,000 tonnes grading 1.56% copper (non-compliant NI 43-101 and has not been reviewed by a Qualified Person). The zone was previously drill-tested to a depth of approximately 200 meters over a length of 350 meters, and was reported as being open at depth. A total of 283 drill holes were drilled on the Fredart ‘A’ and Garnet Lake claims. The area was also explored for molybdenum in the 1970’s and samples containing up to 1.46% Mo were reported.

    Earlier this year (2017) a VTEM Plus survey was done on most of the claims and it showed conductors on these claims that do not appear to have been drilled-tested in the past are 400, 850, 900 and 950 metres and there is an almost continuous trend of conductivity over a length of 6.5 kilometre

    Ben Lake, Joy, Joy North and Caravelle

    The Joy North claim is contiguous with the Joy group of claims and covers five separate mineralized zones, all of VMS character.

    A single 48 metre diamond drill hole was put down in the vicinity of the conductor (exact location unknown) in 1970 by Caravelle Mines Ltd.  It intersected a variety of metavolcanic rocks exhibiting intense alteration of the type associated with Volcanogenic Massive Sulphide (VMS) deposits.  It also intersected calc-silicate rocks suggesting that the Property may lie at the same stratigraphic horizon as the Dixie zone, 11 kilometres to the west.  The Dixie 18 zone, which lies on the Dixie Property, also held by Pistol Bay, was estimated by Noranda Inc. to contain 100,000 tonnes grading 12.5% zinc and 0.5% copper (see caution in footnote).

    Lucky 7 / Moth

    The Lucky 7 Property (5 claims, 640 hectares, 1580 acres) covers a number of mineralized zones. The claims adjoin the Garnet Lake and Garnet East claim groups that are part of the group of properties acquired by Pistol Bay from AurCrest Gold Inc.   A copper-gold sulphide zone, which apparently grades into a siliceous gold zone at its eastern end, was stripped and drill tested in 2002 by Kings Bay Gold Corp.   Two short electromagnetic anomalies were drill tested by Selco Mining Corp. in 1980.  A zone of massive to disseminated sulphides, referred to as the Hilltop Copper-Gold Zone, has been trenched but apparently never drilled.

    The Moth group of 10 claims comprises 85 units (1360 hectares, 3360 acres).  It is separated from the Lucky 7 claims by a 5 kilometre gap.  It covers a 5.5 kilometre length of favourable geology and its north boundary is only 2 kilometres from the former producing South Bay mine, which is at the end of the South Bay Road, and hence the end of the most accessible part of the Confederation Lake greenstone belt.   The area was extensively explored between 1970 and the mid 1990s, with at least 14 diamond drill holes.  Widespread hydrothermal alteration was noted and there were numerous indications of zinc and/or copper mineralization.

    Mitchell, Gerry Lake and Karas Lake.

    The Property consists of 33 mining claims, comprising 232 claim units, and covering approximately 3700 hectares.

    The Mitchell Township or Fly-Moth claim group covers a 9 kilometre stretch of the Confederation Lake greenstone belt and extends to within 1.5 km of the former producing South Bay zinc-copper-silver mine.  The property was explored by Selco Mining Corp., Placer Dome Inc., Kerr-Addison Mines, St Joseph Explorations Ltd., Minnova Inc./Inmet Mining and Noranda Inc. at various times between 1967 and 1999.  Previous exploration has included approximately 90 diamond drill holes.

     The Wasp Lake Mineralized Trend was extensively drilled by Selco; This mineralized trend gave a strong conductive response on Pistol Bay’s recent VTEM PLUS airborne survey.  The Company plans to have the geophysics modelled to assess the possibility of a deep-seated massive sulphide zone.

    The Fly Lake zone was tested by 4 drill holes by St Joseph Minerals in 1976 over a 50 metre length.  Pistol Bay’s VTEM PLUS survey gave a well-defined response on 2 lines, indicating a length of up to 400 metres. This zone appears to be open along strike and at depth.  The Company proposes to drill for extensions of the mineralization, assisted by modelling of the VTEM data. VTEM Anomalies:

     There are 9 discrete VTEM PLUS conductive anomalies that do not appear to have had any previous drill testing.  Their conductivity varies from very weak to moderate.  Most are in areas with little or no outcrop and one is under a lake.

    Pakwash Project

    The 2,130-hectare (5,264 acres) Pakwash South property lies southeast of the Dixie Lake gold discovery now being explored by Great Bear Resources Ltd. It is accessible by old forestry access roads leading from provincial highway 105, as well as by boat via Pakwash Lake and the Chukuni and English Rivers. The property lies in an area of metasedimentary rocks of the English River terrain, including a variety of granitoid intrusives, and is situated just to the south of a major structural zone called the Sydney Lake Fault. Metasedimentary terrains in the vicinity of major structures, once considered to have low mineral potential, have been the site of recent gold discoveries such as Newmont-Goldcorp’s Éléonore mine in northern Québec, the Curraghinalt gold deposit in Northern Ireland, and the Valentine Lake gold deposit in Newfoundland. The property formerly comprised part of a large claim group known as the Goldpines. This was the only previous exploration in the area, and work in this part of the Goldpines property was mainly geochemical, with lake-sediment, lake-water surveys and extensive soil sampling for MMI analysis. The property covers a cluster of anomalous gold in MMI soil samples over an area of 2600 × 1900 metres

    Vanadium Claims Group Project

    Claims Group #1: Measures approximately 1.6 km by 1.0 km covering a number of reported vanadium showing exposed in outcrop and in old mine workings. The USGS report states: “One mine (located within the claim group) however did ship 14 tons of material to the American Vanadium Company.”

    Claims Group #2: Covers an area measuring approximately 1.6 km by 1.0 km with reported vanadium mineralization and a significant number of old workings. No exploration has been completed on the two groups. Overview: The two groups of mineral claims are located in the Goodsprings Mining District, Clark County Nevada. Geology: These claims surround the former producing Springer Mine and Tiffin Mine and are underlain by Mississippian/Pennsylvanian age Monte Cristo Limestone, Birdsprings Limestone and outliers of Miocene age andesite/latite/rhyolite flows. Late north trending mica Lamprophyres dikes cross cut the limestone units. The property covers the extension of the Sultan Thrust fault that dips to the south. The property is also host to several north-south trending west dipping faults. Mineralization: The property covers an area that measures approximately 1.6 kms by 1.0 km and could be expanded to cover 3.0 kms by 2.0 kms based on host rocks and reported vanadate mineralization

    In addition, Pistol Bay Mining Inc. is presently seeking other worthwhile projects but will not make any decisions until proper due diligence is completed.

    2018 Confederation Lake Drilling

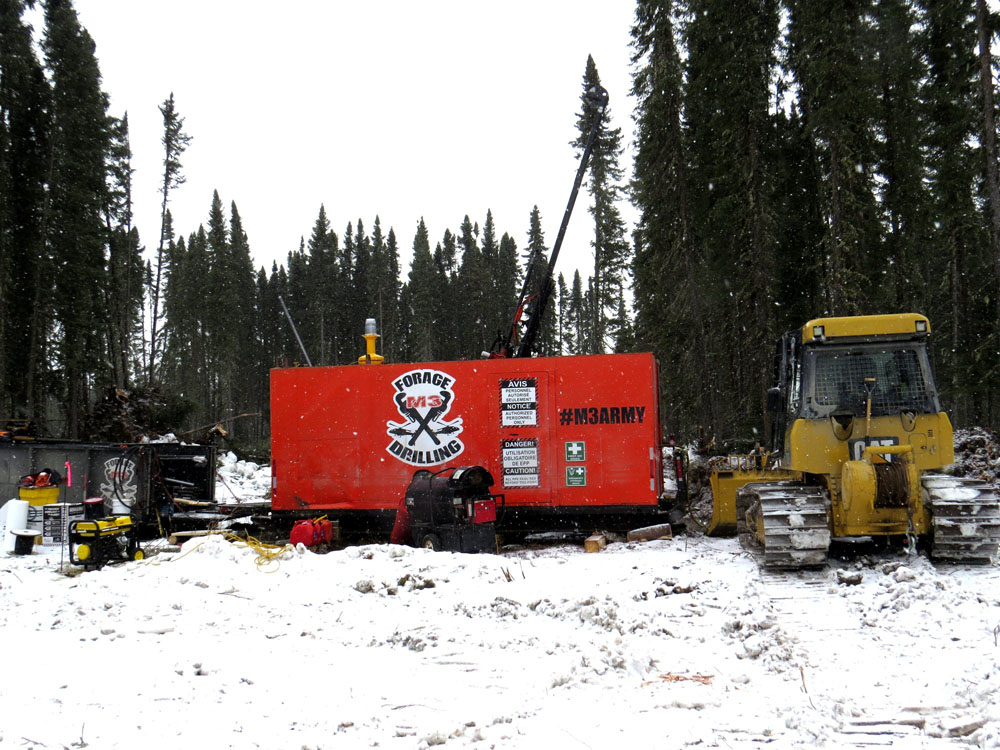

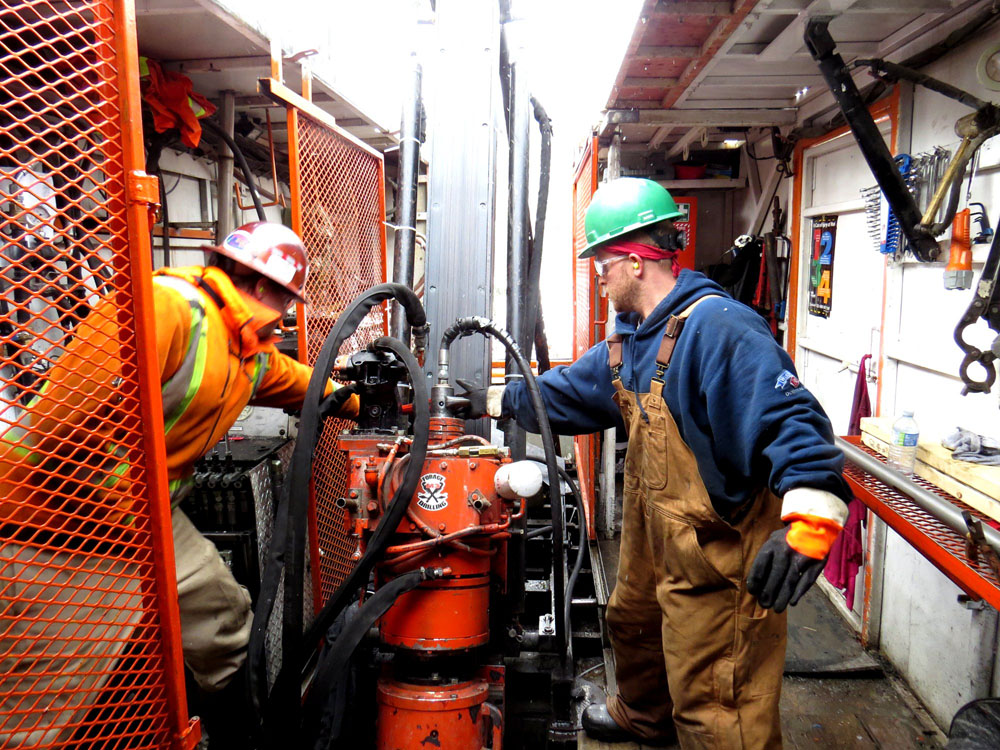

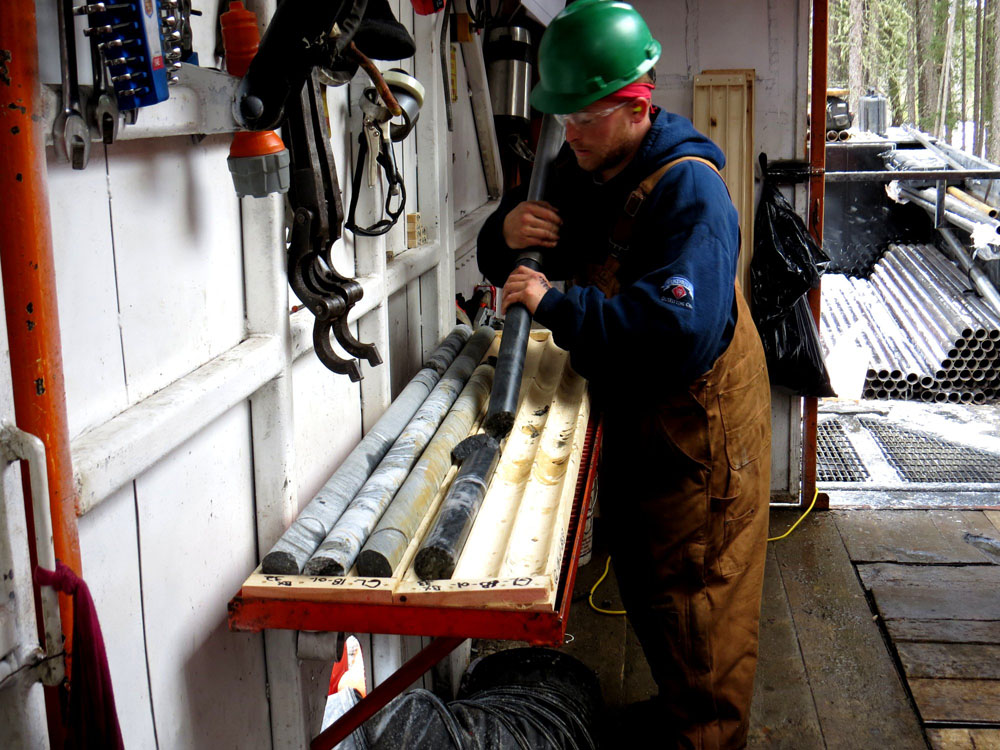

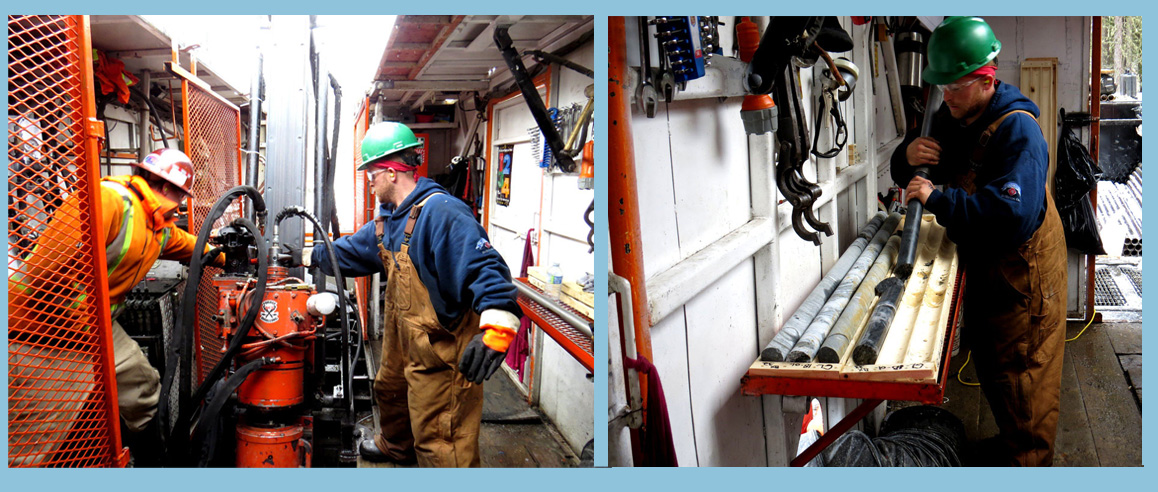

    Pistol Bay has started it's 2018 Confederation Lake Drilling program ( see NR dated March 22, 2018) The first three holes will target the Arrow Zone at roughly 500 meters each. After these three holes are complete, the drill will be moved to the Fredart Claims to start a 10-12 hole drilling program. For more photos of our current program, please see our PROJECTS page under "Confederation Lake Drilling Photos"
